HARDWARE DETAILS
- Professional 24-bit/96 kHz audio interface with ultra-high quality Cirrus Logic® AD/DA converters
- Four 9.7 dBu outputs (RCA)
- Four 12 dBu inputs switchable between line and phono
- High-power 1/4" headphone output with dedicated level control
- Low latency ASIO™/Core Audio™/DirectSound™ driver
- USB 2.0 bus powered
- Eight status LEDs for instant visual monitoring of entire signal chain
- Ultra-compact footprint
- Built tough with sturdy metal enclosure and heavy-duty components
AUDIO 4 DJ combines essential connectivity with brilliant audio quality in one sturdy, mobile design.
Four inputs, switchable between line and phono, and four hi-gain outputs connect your DJ performance software to a mixer or PA.
The USB 2.0 connector provides both the interface with your computer and power for the AUDIO 4 DJ. The high-power 1/4" headphone jack with an independent volume knob, plus eight status LEDs ensure complete audio-visual control.
AUDIO 4 DJ is the perfect interface for all kinds of DJ set-ups, and the bundle of included software will have you mixing music straight out of the box.

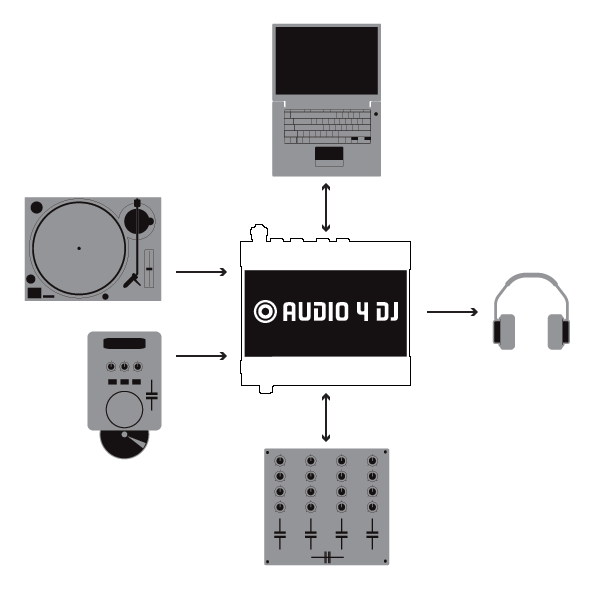

The DJ software is connected via the AUDIO 4 DJ to active monitors and headphones. Since TRAKTOR has an integrated software mixer, no external mixer is needed.
This is the classic DJ setup: Both TRAKTOR decks are connected separately with an external DJ mixer, the mixer is connected with the PA (in this example active monitors).
Digitizing Vinyl: Connect a turntable to the AUDIO 4 DJ and record tracks to your computer by using a wave editor or recording software (not included in AUDIO 4 DJ!)
