HARDWARE DETAILS
- Professional 24-bit/96 kHz audio interface with ultra-high quality Cirrus Logic® AD/DA converters
- Eight 9.7 dBu outputs (RCA)
- Eight 12 dBu inputs switchable between line and phono
- High-power 1/4" headphone output with dedicated level control
- Low latency ASIO™/Core Audio™/DirectSound™ driver
- USB 2.0 bus powered
- 20 status LEDs for instant visual monitoring of entire signal chain
- Ultra-compact footprint
- Built tough with sturdy metal enclosure and heavy-duty components
AUDIO 8 DJ combines generous connectivity with brilliant audio quality in one sturdy, mobile design.

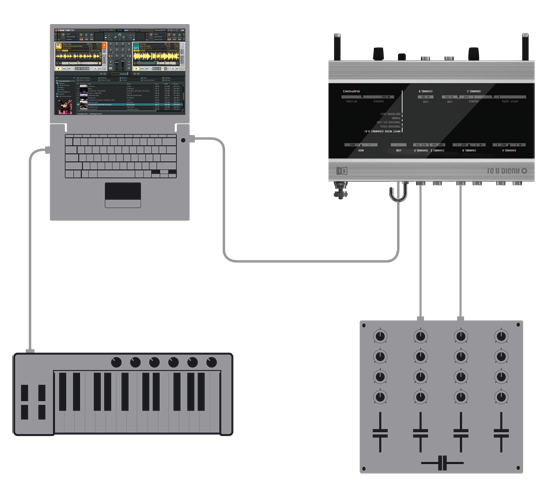

This setup shows the AUDIO 8 DJ used with a MIDI controller and external mixer to control the software.
This is the classic DJ setup: A computer running TRAKTOR SCRATCH is connected to the AUDIO 8 DJ via USB. Two vinyl decks are connected to the AUDIO 8 DJ and to an external DJ mixer. The decks can be switched from controlling software to playing records via the Input Mode switch on the AUDIO 8 DJ.

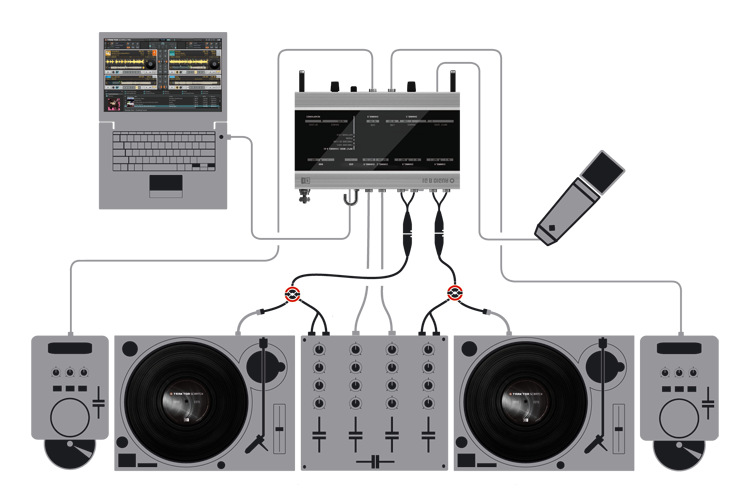

In this set-up the computer running TRAKTOR SCRATCH is connected to the AUDIO 8 DJ via USB. The ouputs of the AUDIO 8 DJ are connected to the channel inputs of the mixer. The two vinyl and two CD decks are connected to the inputs of the AUDIO 8 DJ and to the mixer and can be switched between controling TRAKTOR and playing records and CDs. A microphone is connected to the Mic in of the AUDIO 8 DJ.
