Two inputs allow the use of two guitars or basses simultaneously. The GUITAR RIG software now allows for full stereo meaning individual processing of both signals. Monitor everything with the dedicated headphone socket without needing a P.A. Ideal for practicing and on the road!

The continuous expression pedal and the nine switches are easily assignable to any parameter and afford complete real-time control of GUITAR RIG KONTROL. Should you need real-time access to more parameters additional controllers and pedals may be connected to the dedicated inputs as well as to the MIDI interface. The controller's data is transmitted via USB 2.0. What's more, Rig Kontrol now features full MIDI support, making it a superb toll for also controlling other plug-ins or your host DAW.

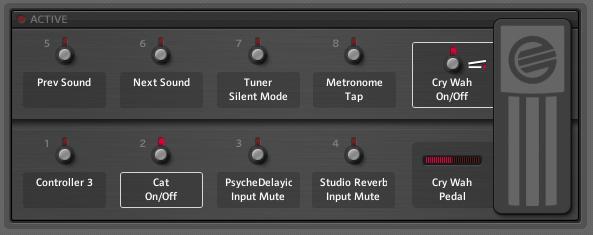

The GUITAR RIG KONTROL software allows fast, easy and convenient assignment of Rig Kontrol 3’s switches and pedal to software parameters via drag and drop, and lets you save the assignments within the preset.

The modulation matrix makes it possible to control multiple parameters just one controller, e.g. control the delay time, delay feedback and delay wet/dry with one pedal movement! The snapshot function makes it possible to store different states of the same rack, this means you can change as many parameters of the current preset as you like with the push of one button.

• Sturdy foot controller with rugged, stylish black aluminum housing
• One metal pedal and nine ultra solid switches (one under the pedal, e.g. to bypass a WahWah effect). Each switch has a status LED indicating its status.
• Two 1/4 TRS inputs with instrument pre-amps (regular line devices such as synthesizers can be used as well), individual gain controls per channel and signal/peak LEDs
• Two balanced 1/4 TRS outputs with high/low switch (full scale and -14 dB, e.g. for guitar amps) and signal LED metersHeadphone 1/4" TRS output with individual level control
• Two 1/4 pedal inputs for additional expression and volume pedals or switch-boxes
• Bidirectional communication with the software (Rig Kontrol 3 displays the status of the software and vice versa)
• 4 digit status LED displays current GUITAR RIG preset number
• Convenient assignment of parameters from within the software
• MIDI I/O with activity LEDs<
• The control data of Rig Kontrol 3 can be recorded to a sequencer automation track
• Easily assign any of the Rig Kontrol buttons and the pedal to a MIDI function: Control parameters and switches of hardware synths, samplers, sequencers and effects

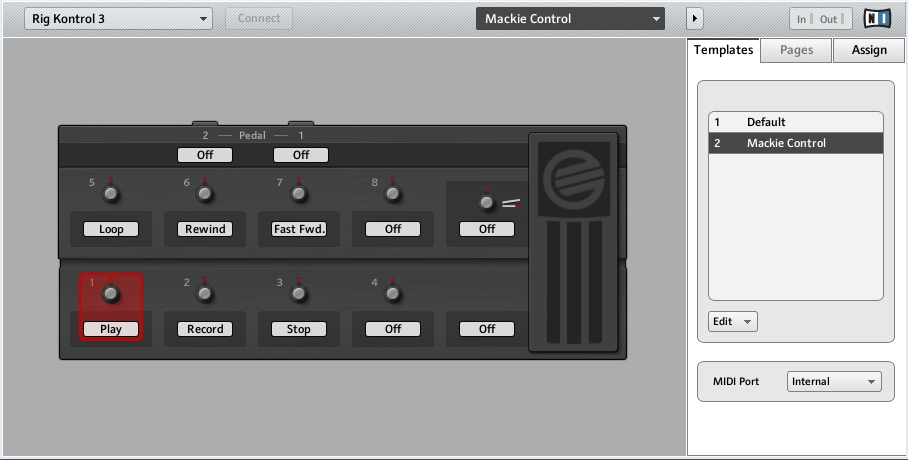

• Easily create your own custom controller settings using the included Controller Editor (MIDI mapping) software
• DAWs with Mackie Control Universal (MCU) support can be easily controlled with the Rig Kontr(Top features page bullet list - additions)
• Rig Kontrol foot pedal now also works as universal MIDI controller (also for 3rd party applications)
• Controller Editor application allows full customization of MIDI assignments

Rig Kontrol 2 and 3 now also work as full-featured MIDI controllers. Use them with any other MIDI-compatible software or hardware and put the whole world of music production at your feet. The new Controller Editor application allows you to fully customise your own MIDI assignments for any hardware/software set-up.

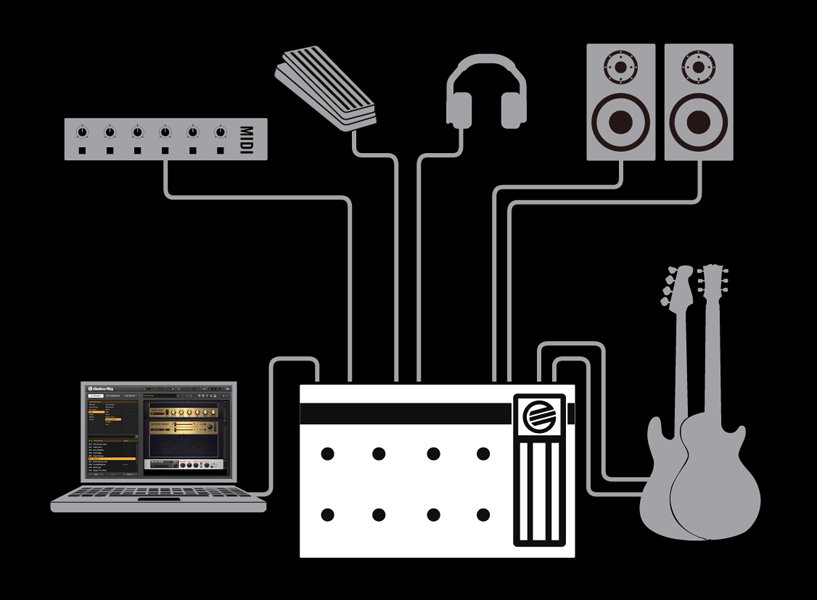

The diagram above illustrates the way devices are connected:

Guitar or bass are connected with standard instrument cables at one of Rig Kontrol 3's inputs.

The controller is connected to the computer via USB 2.0.

The stereo output of Rig Kontrol 3 is connected to the P.A., active speakers or your hifi system.

Additional controllers can be connected via MIDI, two additional pedals to the dedicated input jacks.

The Rig Kontrol 3 hardware is part of the product "GUITAR RIG KONTROL".

If you already own GUITAR RIG 3 Software Edition, KOMPLETE 5/6 or GUITAR RIG 4 PRO, you can buy the Rig Kontrol 3 hardware separately at any time.

Buy the Rig Kontrol 3 hardware only...
