morph WT scapes
- ADDED: Morph WT
- ADDED: mod Morph WT
- ADDED: Lazy buttons MWT
- UNFIXED: Snapshots MWT
- FIXED: Snapshots 1-11
internal mod by wheel CC 1
- PM/X AMOUNT 1 & 2
- RESONATOR MIX 1-4
- CROSSFADE Flanger:Delay

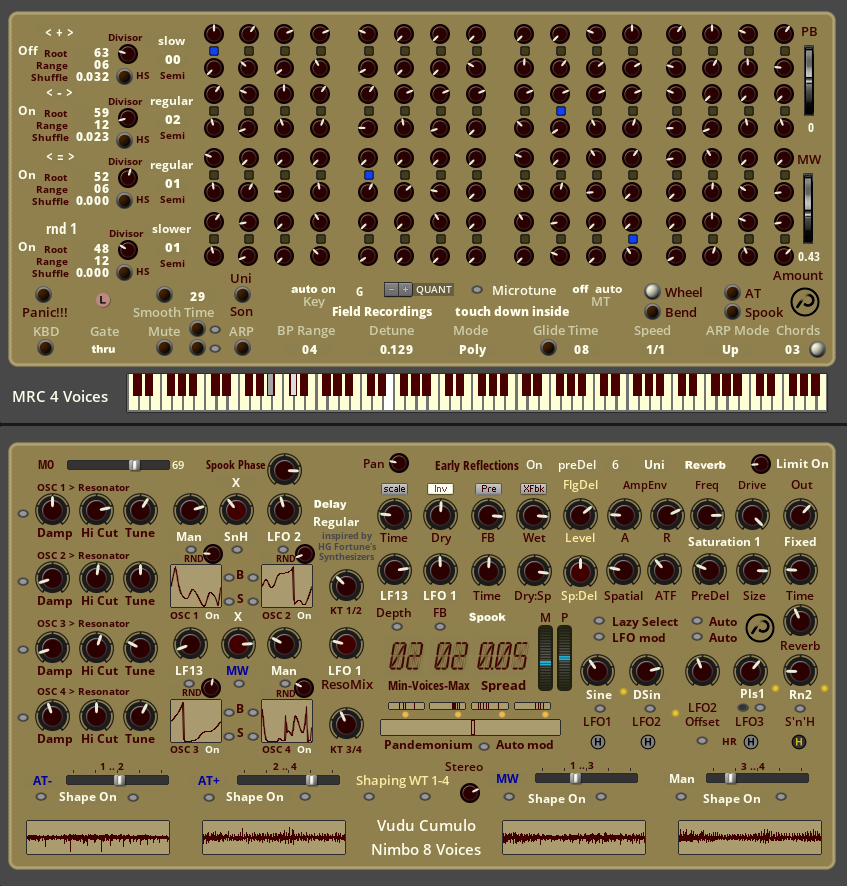

workflow for VCN :
Incoming MIDI is pitch mod by the two modulators crossfade by the middle between both. Button Key/X can change between mod and direct PM. The knob is the amount of mod by LFO combinations, Aftertouch and wheel. Turn to left for no mod.
MIDI drives the 4 wavetable oscillators from a map contains 3,400 samples. On every WT display are two unvisible knob layers. The upper is for banks the lower for the samples. The map contains 34 banks - each bank with 100 WT samples.
Followed by 2 filtered resonators - ended in Pandemoneum. Each osc has its own Resonator.
Effects taken from Illusions of Sound: Flanger parallel to Delay, follwed by Reverb. The gate way is for amp envelope and the WTs.
To avoid hummings be carefully with max unison and deep freqs in resonator.
LFO: The knob is the rate: left long up to 2 bars - at right shorter 1/2 (1/8T LFO2).
Please use ALT+I to show the info hints of gui elements.
Parts of bank 2 kindly created by friends
Alan, Philippe, Jonathan, Greg
All the small gre(a)y ovals are Lazy (random) buttons
Please be patient with the generating events from MRC. There is a new AutoFade @snap#. Gate is set to zero and MRC recalls WT select.
Hold gate (Gate friize) based on devs by Colin Brown, snapshot exclusive.
CC 2 mod Flanger Time. CC 22 delayed 25 ms mod Flanger Depth
percussions in demo is pandoro with external midi file
