SEQ SWITCH 1.0
Converting the SEQUENTIAL CONTROLLER to full 24 stages, etc.
There are two example ensembles beside two info texts. The ensembles are not intended to impress anyone musically! One show you how to set up SEQ SWITCH to turn SEQUENTIAL CONTROLLER 2.1 into a 24 stage sequencer and one show you how to turn it into a 72 stage sequencer. You will see the number of possible steps is endless.
SEQ SWITCH 1.0

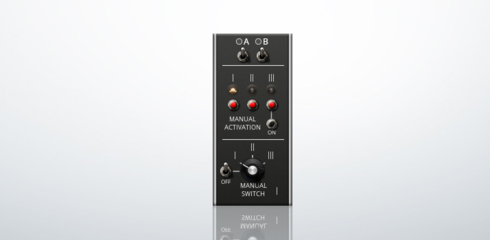

The SEQ SWITCH converting the SEQUENTIAL CONTROLLER to a full 24 stages by alternately selecting one of three rows. The SEQ SWITCH can also be used as a general purpose latch, shifter, and signal selector among other logic functions.
Stages can be selected with a manual push-button, a Gate (1, 2, 3) input, or with the shift input. A lamp and trigger output is activated when a stage is On. A signal selector section can switch one of 3 input signals to a common output determined by which stage is selected.
A, B & C Inputs
One of three signal inputs is connected to the Output depending upon which stage is active.
A trigger (gate) pulse at the 'Shift' input causes the SEQ SWITCH to activate the next stage.
Gate 1, 2 & 3 Inputs
Trigger inputs allow other signals (gates) to activate specific stages.
Gate 1, 2 & 3 Outputs
A trigger (gate) output turns On when its stage is active.
An addition to the original design. You can Switch the stages manual or modulate the active stage by an modulation input (Mod A, B). When 'Manual Switch' is on, the Shift Input, Gate Inputs and manual Buttons are off. The 'Stage III on/off Button' is still active.
