Sequential Routing Matrix

4x4 Sequential routing matrix with gate and 4 DAC outputs.

(7 Votes)
1.0 (Updated 2 years ago)
1.0MB
September 23, 2016
Reaktor 6
Blocks User Blocks

DESCRIPTION

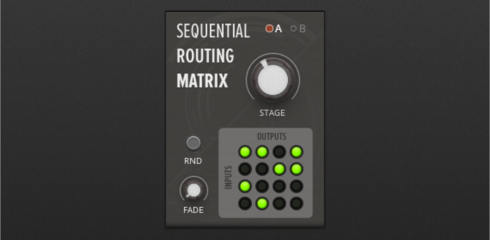

The Sequential Routing Matrix is a Block inspired by the WMD Sequential Switch Matrix
eurorack module and capable of routing 4 inputs to 4 outputs according to a 4x4 button / pin matrix.
The SRM can store and recall 16 different stages (routing presets) which can be modulated / sequenced using the A/B mod inputs.

This block also includes extra features such as a Gate output that sends a gate signal whenever a new stage is recalled, 4 DAC outputs which can generate unipolar signals based on the routing matrix pattern, randomize button (for the active stage), and adjustable fade time for the routings / DAC.

Have fun!

OBS: Sometimes the matrix buttons have to be double-clicked to be turned on/off. I still need to figure out a way to fix this but it shouldn't be a huge problem.

Developed by
Ícaro Ferre
Spektro Audio
http://spektroaudio.com/
