Multiple Band, multiple stage delay

Delays on demand

(5 Votes)
arachnaut
1.0 (Updated 3 months ago)
179.8MB
October 13, 2022
Reaktor 6
Effect Delay based

DESCRIPTION


This is a variation on the Superformula Dispersion block - it is a bit more predictable.

At the 'core' is a single macro that processes a single octave band which is assigned a Reaktor 'voice'.
11 of these octave voices make up a full channel of audio, and this channel is fed back into the other voices, as many of these stages as you like.

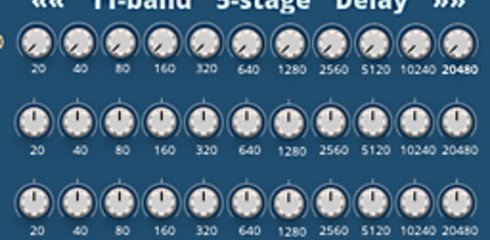

There are two versions supplied here: an 11-band, 11-stage delay (which uses 121 Reaktor voices) and requires significant CPU horsepower, and an 11-band, 5-stage delay (which uses 55 Reaktor voices) and requires a fairly standard CPU, even a laptop would probably do OK.

Two blocks (11-stage and 5-stage)and two block patches (11-stage and 5-stage) are included.

The demo file shows a selection of presets in the 11-stage Block patch.

If you want to get creative, you could place a cascade selector inside that central macro and design a different circuit for each cascade. In other words, the 11 cascades could be a delay followed by a bit-crusher followed by a flanger followed by a tube overdrive followed by... up to 11 device types.

The Block patch is based on the factory Steps block patch.

I include a small macro by Dietrich Pank - Auto Mute during snapshot changes - the block.

The 11-stage block has 128 snapshots, the 5-stage block only has 37. Both patches have 128 snapshots.

I enjoyed making this, I hope you have fun with it, too.
