Rotating Clock Divider Clone

Clone of the 4ms Pedals RCD eurorack module

(3 Votes)
1.0 (Updated 5 years ago)
73.6kB
September 18, 2013
Reaktor 5 or lower
Instrument Sequencer

DESCRIPTION

This is a clone of the Rotating Clock Divider module by 4ms Pedals.

It's works by sending CV gates or envelopes to 8 different outputs.
I created this ensemble to work with my Expert Sleepers ES-3 module, so each one of it's outputs outputs a different division of clock, like a real RCD.

If you don't have an interface with DC-coupled outputs, or some module similar to the ES-3, or doesn't even have a modular synth, this ensemble may end up being useless for you. (However you can use the outputs to send the gates / envelopes to something else but you're on your own here.)

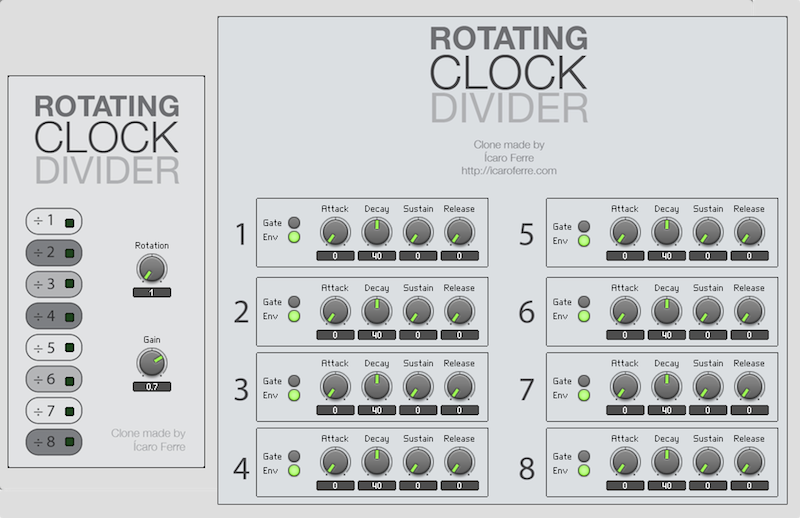

Control for rotation and gain are available on panel A and envelopes are available on panel B.

Hope you guys have fun with this!

PS: I recommend that, everytime you rotate the clock, press pause and then play. This will ensure that all the outputs are synced and etc.

--
Ícaro Ferre
http://icaroferre.com

COMMENTS  (4)

Michael Walton
3 years ago
hey, any chance of a blocks version of this?
Martin Sovinz
4 years ago
hi, great ensemble, works nice with my ES-40! thanks a lot. do you think it would be possible to add a reset to the clocks, like every bar or so? cheers!
Daniel Raffel
4 years ago
Thanks for sharing! Does this output on all 8 outputs of the ES-3? I haven't been able to enable that in Logic since I'm a bit unclear how to setup the track to enable that!
Jason Chatzilias
5 years ago
awesome.i saw someone post a youtube video of a reaktor version of RCD before..really curious to try it!
