Xdrum3

51 vintage rhythm composers with random selection and effects

 (355 Votes)
3.0 (Updated 8 years ago)
28.6MB
April 18, 2010
Reaktor 5 or lower
Instrument Sampler
Grooveboxes

DESCRIPTION

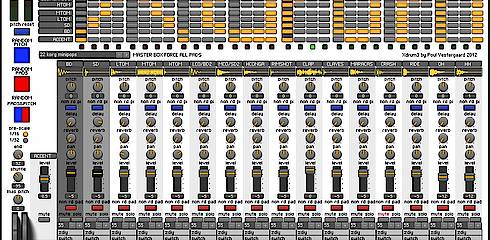

Xdrum3 is a sample based rhythm composer for reaktor 5.6.2
It has more than 870 audio samples 74MB (29MB zip) from 51 vintage rhythm composers, and then 13 aditional soundsets.
Besides that it has more than 120 classic and electronica preset patterns.

big inspiration from:
LIME.lite v1.1
by Jörg Remmer Müller

stuff copied:

vitaverbLE
by Vitaly Zolotarev

exciter the Fixer v1.1
by Flemming Bloch

minidrum
martin brinkmann

Fast FX
by Lazyfish

and others....

fixed issues from Xdrum2:

pitch change won't save
hold on midinotes for all pads
all mono modules
less real estate

new features:

no22 added with korg minipops mp7 samples
no36 roland tr808 replaced with better samples
no37 roland tr909 replaced with better samples
no47 yamaha pss140 replaced with yamaha mr10
no50 zdiy circuit replaced with yamaha ry30
no51 zdiy klingklang replaced with wersi wm24
no53 zdiy human some samples replaced with other diy

30db on volumes faders in stead of 20dB

midi output from step sequencer note 35 to note 51
midi input hold on note on

three new effect copyed from Fast FX by Lazyfish

freeze effect on C3 / note60 / keyboard "Q"
loop on controller 2
spin on controller 3
spin time on controller 4
jitter on controller 5

grainslice effect on D3 / note62 / keyboard "W"
slice a on controller 6
slice b on controller 7
lenght on controller 8
lenght mod on controller 9
random x on controller 10
random y on controller 11
slide on controller 12
slide mod on controller 13
asym on controller 14
decay on controller 15

slice modulation effect on E3 / note64 / keyboard "E"
slice a on controller 16
slice b on controller 17
sncvar on controller 18
rev a on controller 19
rev b on controller 20


soundsets.....................

01 acetone rhythmking
02 akai xr10
03 alesis hr16
04 boss dr110
05 boss dr220e
06 boss dr550
07 c64 sid
08 casio mt500
09 casio rapman
10 casio rz1
11 cheetah specdrum
12 emu edrum
13 emu sp12
14 gem drum15
15 hammond autovari64
16 kawai acr20
17 keio checkmate
18 korg ddd1
19 korg ddm110
20 korg kpr77
21 korg kr33
22 korg minipops
23 linndrum 9000
24 mattel synsonic
25 mti ao1
26 mxr 185
27 oberheim dx
28 pearl drx1
29 roland tr707
30 roland cr78
31 roland cr8000
32 roland r8
33 roland tr33
34 roland tr606
35 roland tr727
36 roland tr808
37 roland tr909
38 sakata dpm48
39 sequentialcircuits drumtracks
40 sequentialcircuits tom
41 simmons sds9
42 simmons sds1000
43 technics ax5
44 vermona drm1
45 visco spacedrum
46 wurlitzer swigingrhytm
47 yamaha mr10
48 yamaha rx5
49 yamaha rx15
50 yamaha ry30
51 wersi wm24
52 zdiy hiphop
53 zdiy human
54 zdiy nudge
55 zdiy switch
56 zdiy electric
57 zdiy electro
58 zdiy proton
59 zdiy glitch
60 zdiy electron
61 zdiy fm
62 zdiy ocsing
63 zdiy analog
64 zdiy effect


haiku specifications................

51 vintage drumboxes
13 diy soundsets
more
than
870
samples
16 pads
120 patterns

master box selector
random pads buttom
random pitch buttom
modwheel lowpass
global pitchbend

reverb
delay
compressor
exciter
control by midi pads, modwheel and pitchbend
freeze effect
grainslice effect
slice modulation effect


haiku midi..........................

pads by noteon
midi output from step sequencer note 35 to note 51
sync to seq
modwheel
pitchbend
freeze effect on C3 note60
loop on controller 2
spin on controller 3
spin time on controller 4
jitter on controller 5

grainslice effect on D3 note62
slice a on controller 6
slice b on controller 7
lenght on controller 8
lenght mod on controller 9
random x on controller 10
random y on controller 11
slide on controller 12
slide mod on controller 13
asym on controller 14
decay on controller 15

slice modulation on E3 note64
slice a on controller 16
slice b on controller 17
sncvar on controller 18
rev a on controller 19
rev b on controller 20


haiku manual........................

force all pads (master box) selector changes all 16 sounds.
find your flavour of soundset with force all pads (master box) selector
then edit individual sounds

random pads (red buttom) change all pads random.
but non randompad buttom can lock the pads.
random pitch (blue buttom) change all pitch random +- 1 octave
but non randompitch buttom can lock the pitch of each pad.
the redblue buttome changes both at the same time.

remember to save snapshot
snapshot is totalrecall of sounds and rhythm


enjoy...

february 2012.
Poul Vestergaard.
