Herw Modular X Addons 3
Waveshaper and "Parker's Ring Mod" for Modular X Framework
DESCRIPTION
Another very simple addition to the amazing Modular X Framework by Herwig Krass.
Waveshaper: I just put the standard Reaktor 2BP Waveshaper in a container with modulation options.
Ring Mod: Put the "Parker's Ring Mod" by Louis-Xavier Buffoni into the Ring Mod container.
Problem is it only works monophonic - I tried to make it polyphonic by simply adding one for each voice and splitting the voices, which works but takes a lot of CPU. If anyone knows how to make it polyphonic without burning the CPU would be very cool.
Besides that it sounds really great and can add a lot of analog feeling.
- on the B-Panel of the container you can finetune it and switch between Parker's and the regular Ring Mod (which, of cause, also works polyphonic).

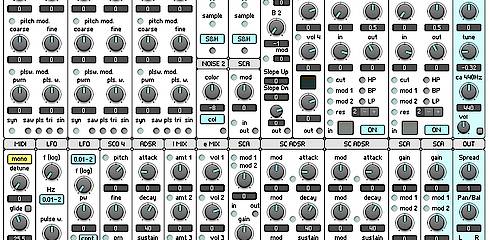

Theres also an example build in the zip, roughly oriented at a Doepfer Basic System, which has some other small modifications:
-all Oscillators and filters are connected to pitch by default, LFOs and ADSRs to gate.
-on B-Panel you can switch between standard and Anti Aliased Oscillators and define the soft-sync rate of the AA ones, and the SCO 4 can be switched to a more standard AA supersaw
-filter containers can be switched to different filters:
-2- 2 pole filters
-4- 4 pole filters
-P- Pro 52 on LP, BH4 on HP, BL4 on BP
-M- Moog Ladder filter 2p, 3p and 4p on HP, BP, LP
-MIDI container has two CV outputs, cv2 can be switched to external input
Big thanks to Julian Parker and Louis-Xavier Buffoni for creating the very nice sounding Ring Mod!
And of cause biggest thanks to Herwig Krass for building one of the best synths ever!
