Help With 2 Outputs [speaker + Headphones]

Discussion in 'General DJ Forum' started by Garswood, Aug 4, 2011.

  1. Garswood

    Garswood New Member

    Messages:
    10
    I've recently got into DJing and I'm trying to set up some gear so I can start mixing.

    my setup is a "numark mixtrack pro" controller and headphones with traktor 2 pro.

    SO MY QUESTION IS: How do you route audio settings properly for traktor pro 2 so i can play my music through my speakers and my cue through headphones?

    I also have the asio4all v2 driver but I still can't get it to work or must be doing something wrong! Any help would be GREATLY APPRECIATED!

  2. ItsChris

    ItsChris New Member

    Messages:
    14
    I have the same problem. i got traktor le 2.. i felt like ive done everything (put the output monitor 3-4 n master 1-2) and i ran out of option... im pretty much stuck...

    about the Build-in Soundcard (Win Build-in) what goes in there?..

    SOMEBODY HELP US!.... =]

  3. Garswood

    Garswood New Member

    Messages:
    10
    Tell me about it man, I've literally tried everything regards to alternating with each soundcard and different channels, and looked up everything on the internet for about 8 hours straight yesterday, and still nothing! They sell the software WITH the mixtrack pro so it must be a solution!

    HELP

  4. ItsChris

    ItsChris New Member

    Messages:
    14
    Rofl.. tough luck 4 us dat sux.. I pretty much read every forum and most of em r guys using VDJ. So hard without cueing songs with headphones =@

  5. Garswood

    Garswood New Member

    Messages:
    10
    I know, that's the whole point of DJing :L Well I'm uploading some pics now of my settings to see if anyone can help..
    ---

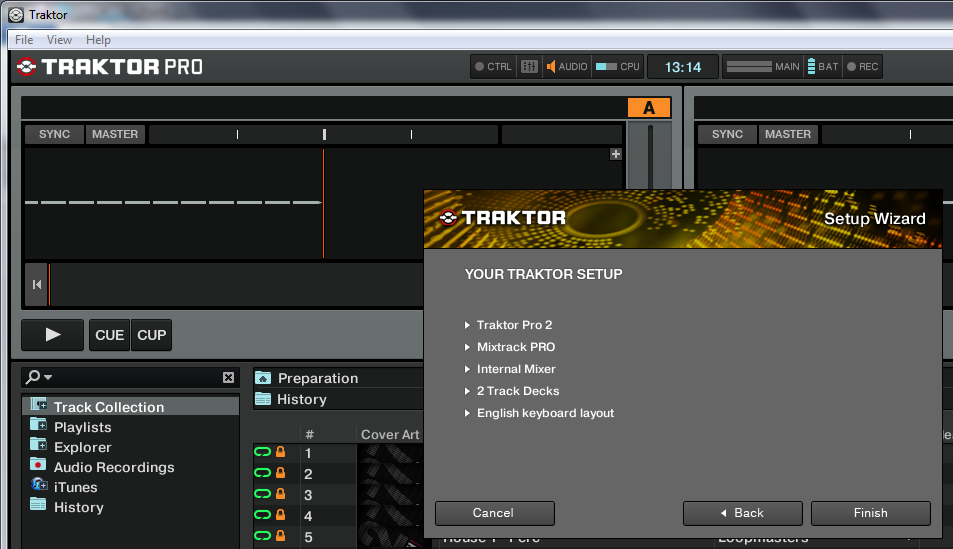

    Wizard
    [​IMG]

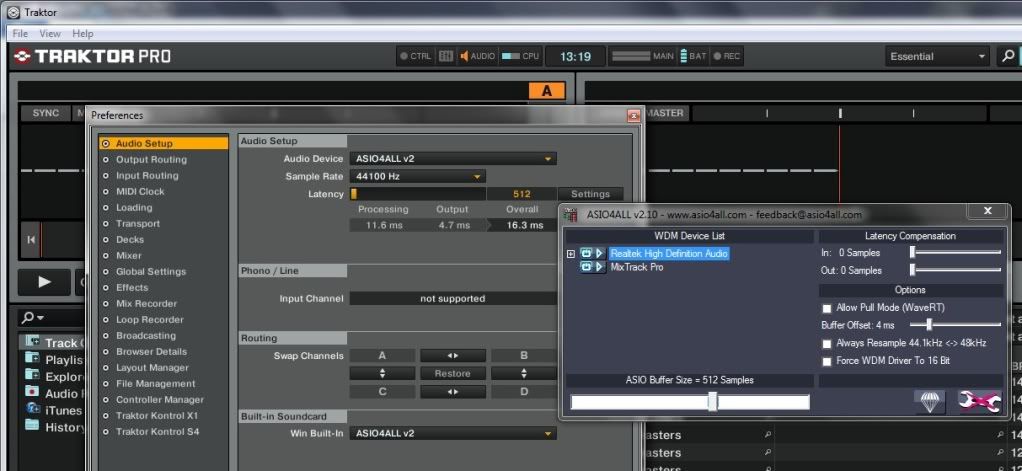

    Soundcard
    [​IMG]

    Audio Routing
    [​IMG]

  6. Russ Cole

    Russ Cole NI Product Owner

    Messages:
    80
    Hmm. This could be bad news for me. I've been looking at the MTPro and would hate to have config challenges.

    Are you using a Mac or a PC?

  7. Garswood

    Garswood New Member

    Messages:
    10
    Pc.. :/

  8. DJ_GRiM

    DJ_GRiM NI Product Owner

    Messages:
    27
    Hey you not out of luck, you can use Jackto help you, for more info email me! Or there is another option.

  9. Garswood

    Garswood New Member

    Messages:
    10
    Jackto? Explain :) Yeah what's your email address?

  10. DJ_GRiM

    DJ_GRiM NI Product Owner

    Messages:
    27
  11. Garswood

    Garswood New Member

    Messages:
    10
    Okay sent you an email

  12. DJ_GRiM

    DJ_GRiM NI Product Owner

    Messages:
    27
    I will put together a tutorial on this and post it very soon, this could take a while cause of the different parameters each of you are using. But for the mean time go to google and type in Jack audio and download the free program.

    GRiM

  13. ItsChris

    ItsChris New Member

    Messages:
    14
    Cud u post it here so i can see it too =]

  14. DJ Phatso

    DJ Phatso NI Product Owner

    Messages:
    469
    You know, they have a lovely document on Numark's web site explaining how to configure the Mixtrack Pro with Traktor:

    http://www.numark.com/content269066.html

    (enter anything in the required fields and click Submit)

  15. Garswood

    Garswood New Member

    Messages:
    10
    Okay downloaded the Jack Audio Connection Kit? If that's the wrong thing, could you leave a download link?
    ---
    You hero, didn't know about it, sorry new to all this. I'll have a go, cheers buddy

  16. ItsChris

    ItsChris New Member

    Messages:
    14

    I have followed that procedure, ( im assuming Gars has too ) and it didnt really do much.. =S

  17. Garswood

    Garswood New Member

    Messages:
    10
    Right I've followed that tutorial exactly, and still nothing. All I get is sound through my headphones now, and nothing through speakers. I have speakers which connect to the speaker socket in the laptop, rather than USB speakers.. would that make a difference? Literally I don't know what else I could try! :(

  18. ItsChris

    ItsChris New Member

    Messages:
    14
    Aye bro got mine working, i went to ASIO and edited RealTek HD, expand it and disable RealTek HDA Primary output so i only have 1 highlighted which is the audio line input. Keep the MixTrack Pro enable.... hope it helps aye.. cheers

  19. DJ Phatso

    DJ Phatso NI Product Owner

    Messages:
    469
    As the document indicate, in ASIO4all, you enable the USB AUDIO DEVICE (the Mixtrack integrated soundcard).

    Then, you tell Traktor to use ASIO4all.

    Why would it send the audio signal to your computer's soundcard?

    The speakers must be connected to the back of the Mixtrack Pro if you want to follow the logic...

  20. Garswood

    Garswood New Member

    Messages:
    10
    WORKING! Thanks for all your help. It was because my speakers were plugged into my laptop.. like i said, I'm NEW hahah cheers guys
    ---
    One more thing, the sound quality in my headphones is really poor? Like crackly, and they're good headphones?
    ---
    Don't Worry. Got It. Cheers Guys
