No Sound into mixer.

Hi,

Im very new to traktor upon completing the whole set up in noticed i can control the decks with my CDJS but am not getting any sound going into my mixer or out of my speakers.

Any help would be appreciated.

Set up is :
Pioneer cdj 800 x2
Behinger 750 (4 channel)
traktor pro 2 with audio 10.

Thanks
Jake



sounds like your input settings are good

post a screenshot of your output settings from preferences and we can go from there...



Just noticed as well i can only contol deck B , Deck A isnt control by my pioneer cdj although the platter moves on the Traktor software it doesnt move, cue / play the track e.c.t.

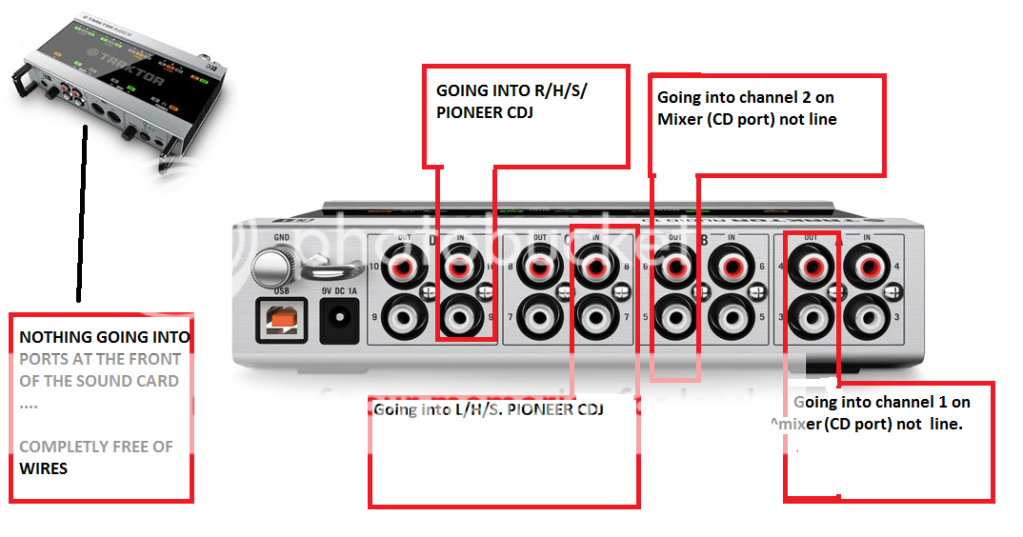

Here are some photos which may make more sence of whats wrong.

Thanks for your help.

Jake









---
Just to add to this when i swap the channel routing i get sound going into the mixer which i can control, but cannot then control the track with the CDJ's the platter on the traktor software continues to say calibrate (Waiting) on the platter.

ANY IDEAS?

Thanks
Jake



Update i now have sound coming into the mixer and i can control this is did this by adding x2 rca cables to 2 more channels on the mixer. but i still have no sound into amp / speakers i have no rca cable going into the front main ports of audio 10 would it be this?
---
tell a lie the added cable fixed it, i didnt have the amp on after doing that now its all working fine



from your pictures, you seem to have the outputs from the Audio 10 coming from the wrong ports.

You have the CD-J's connected to inputs, and should be using the same outputs to then send signal to the Mixer.

e.g CDJ1 signal is going into 7 & 8, and should be coming from the outputs of 7 & 8 into the mixer.

post a screenshot of your OUTPUT ROUTING settings
