DESCRIPTION

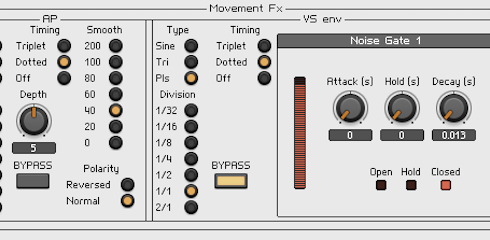

This is a plugin for the Maschine Plus that has 2 independently controlled stages that are Beat Synced to the BPM of the project. This is accomplished via Sine, Triangle, or PWM oscillators controlling a LFO.
Both stages have Note divisions from 1/32 - 2/1, Regular, dotted, and Triplets. Both Sides have individual Bypasses and the Autopan Has selectable smoothing times from 0 - 200 ms. Depth controls the mix of L/R at the peaks of the LFO. Reverse polarity flips which side the Pan moves to first.
Depth 0 = no pan
Depth 5= 50% pan
Depth 10 = 100% pan


The Volume Shaper is an LFO controlled noise gate. The Noise gate was built by (Peter Whiting 2009). The attack, Hold, and decay are in increments of Milliseconds but the overall is Seconds.
Attack 0- 1 seconds (0.155 = 155 milliseconds)
Hold 0-2 seconds (1.250 = 1250 milliseconds or 1.25 seconds)
Decay 0-4 seconds (3.5 = 3500 milliseconds)
