Integration

Abstract

Learn how STRADIVARI VIOLIN integrates with NKS instruments and your DAW when using automation and MIDI CC Mapping.

This chapter explains how STRADIVARI VIOLIN integrates with NKS instruments and your DAW when using automation and MIDI CC Mapping.

NKS Keyboard Mapping

STRADIVARI VIOLIN supports NKS (Native Kontrol Standard). The default NKS mapping can be seen in the KONTAKT or KONTAKT PLAYER keyboard:


Virtual keyboard in KONTAKT indicating the NKS mapping with colors.

  • Red: The Red keys are used for switching between different articulation slots. For more information, refer to Articulation.

  • Purple: The purple key is used for the Bow Change feature. For more information, refer to Bow Change.

  • Green: The green key is used for the Force Open Strings feature. For more information, refer to Force Open Strings.

  • Blue: The blue keys indicate the range of notes playable with STRADIVARI VIOLIN

NKS Control Mapping in STRADIVARI VIOLIN Multi Mic

STRADIVARI VIOLIN Multi Mic NKI comes with pre-mapped NKS controls.


STRADIVARI VIOLIN's Multi Mic NKS controls as seen in KOMPLETE KONTROL software.

The following controls have been pre-mapped:

  • Expression

  • Vibrato Style

  • Vibrato Intensity

  • Vibrato Rate

  • Position Preference

  • Volume, Close Microphone

  • Volume, Mid Microphone

  • Volume, Far Microphone

NKS Control Mapping in STRADIVARI VIOLIN

The standard version of STRADIVARI VIOLIN comes with pre-mapped NKS controls.

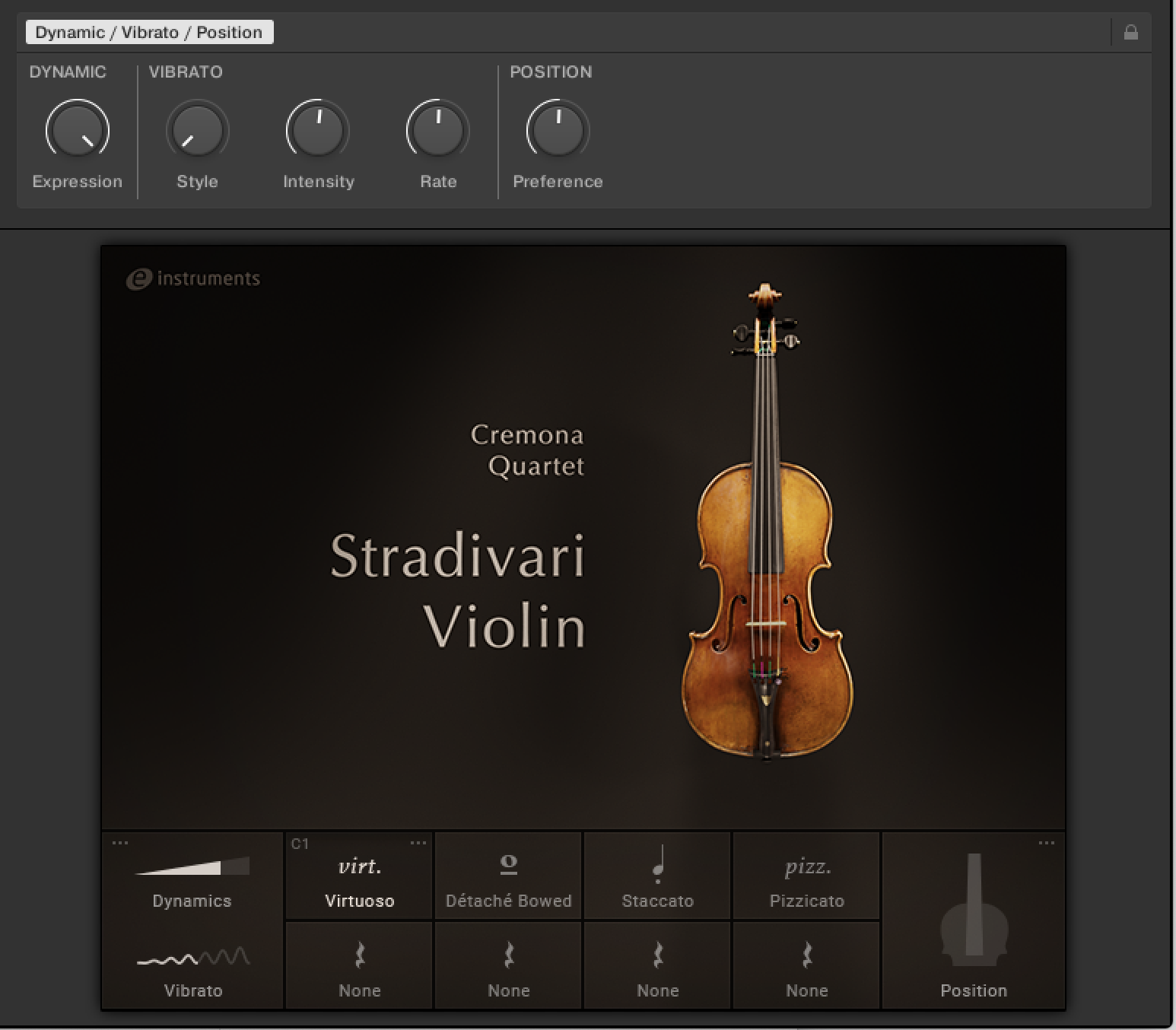

STRADIVARI VIOLIN's NKS controls as seen in KOMPLETE KONTROL software.

The following controls have been pre-mapped:

  • Expression

  • Vibrato Style

  • Vibrato Intensity

  • Vibrato Rate

  • Position Preference

Host Automation

STRADIVARI VIOLIN has pre-mapped host automations.

  • Click Automation in the top-left side of KONTAKT or KONTAKT PLAYER to show the list of mapped parameters.

  • Click Host Automation to show the list of pre-mapped host controls.

Pre-Mapped Host Parameters for STRADIVARI VIOLIN Multi Mic NKI

The following parameters have been pre-mapped for STRADIVARI VIOLIN Multi Mic:

Host parameter

Assigned to

# 000

Expression

# 001

Vibrato Style

# 002

Vibrato Intensity

# 003

Vibrato Rate

# 004

Position Preference

# 005

Volume, Close Microphone

# 006

Volume, Mid Microphone

# 007

Volume, Far Microphone

Pre-Mapped Host Parameters for STRADIVARI VIOLIN NKI

The following parameters have been pre-mapped for STRADIVARI VIOLIN’s standard version:

Host parameter

Assigned to

# 000

Expression

# 001

Vibrato Style

# 002

Vibrato Intensity

# 003

Vibrato Rate

# 004

Position Preference

MIDI CC Mappings

The following MIDI CCs are either pre-mapped or used internally by .

Pre-mapped CCs have the respective parameters written next to them. The unmarked CCs are used internally by the STRADIVARI VIOLIN engine. It is suggested to avoid using or remapping these CCs to avoid any possible MIDI issues.

CC

Parameter

1

Dynamic

2

3

4

11

Expression

14

Vibration Intensity

15

Vibrato Rate

20

Vibrato Style

21

Position Preference

35

40

41

42

43

45

50

51

52

102

103

104

105

106

107

108

109
