DESCRIPTION

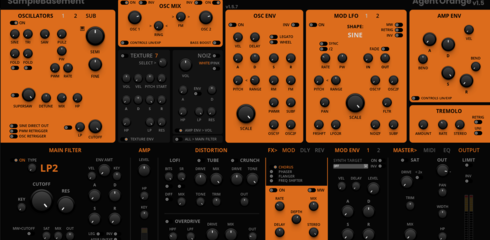

(SB) Agent Orange is a virtual analog synthesizer with all the effects and modulation options you could wish for to create a wide spectrum of sounds.

Features:

Sound generation:
- 2 oscillators with 4 mixable waveforms (Sine, Triangle, Saw & Pulse), filter (HP, BP & LP) per oscillator. Wavefolding on the sine and triangle waves. PWM.
- Oscillator 1 features a supersaw generator with detune and mix control.
- Oscillator 2 features 4 harmonic generators.
- RM, FM (Osc1 > Osc2).
- Sub oscillator (morphable pulse, triangle and saw waves) with dedicated low pass filter.
- Oscillator mixer with phase invert, bass boost and ringmod & FM control.
- Texture generator with 20 different texture sounds. Low and highpass filters. Sound output is switchable between constantly playing or controlled by the dedicated envelope.
- White/Pinknoise generator with dedicated envelope and low/highpass filters.
- Main filter with 9 filtermodes, key follow, filter envelope & poly saturation.

Modulation:
- Oscillator envelope with control over pitch, PWM rate, osc filters & RM/FM.
- 2 multi-wave mod LFO's with carefully chosen destinations. Restart, invert, fade in & out and tempo syncing.
- 2 Mod envelopes with carefully chosen destinations. Mod envelope 1 contains various synth targets (polyphonic) while mod envelope 2 contains FX targets (monophonic).

Effects:
- Tremolo.
- Distortion effect section (Lofi, tube, crunch and overdrive).
- FX module with 3 effects sections:

Mod:
- Chorus.
- Phaser.
- Flanger.
- Frequency shifter.

Delay:
- Stereo delay with tempo sync, High/lowpass feedback filters with resonance control.

Reverb (2 types):
- Altered microspace reverb with pre delay, Low/highpass filters & lofi effect.
- Metaverb.

- Output section with saturation, high pass filter, volume & pan, width, EQ and brickwall limiter.
- Midi section with poly, mono and various arpeggiator modes (the arpeggiator only works when host is running.

- Agent Orange has been NKS mapped for use in Komplete Kontrol & Maschine Software.
(NKS mapping has been done by Stephen Wey aka Kymeia on the Reaktor forums)



-----------------------------------------------------------------


Update History:

1.5.7:
- CPU optimizations
- Minor visual updates

1.5.6:
- Agent Orange has been NKS mapped for use in Komplete Kontrol & Maschine Software

1.5.5:
- All presets now contain "NI Meta Info" so the presets will show up in Komplete Kontrol and Maschine software (Save the ensemble in the User content/Reaktor folder). The next update of Agent Orange will have a more thorough NKS implementation with panelsets set up.

1.5.4:
- Fixed: Sustain was not connected in the MOD ENV's.
- Added RAMP and NOISE waves to the MODLFO's.
- Added Invert switches to the MODLFO's.
- Added PRO52, NOTCH, BUTTERWORTH2 LP4, LP6 & LP8 filters.
- Added a FLANGER to the FX>MOD section.
- The FREQUENCY SHIFTER has been updated with a quality control.
- Added a highpass filter to the AMP.
- Visual update.

1.5.3:
- Altered the preset library to be more uniform in volume.
- Added more presets.
- Added a keytracking Off/On switch to oscillator 1&2. With keytracking off, the pitch will default to 60 (middle C) and is adjustable with the SEMI and FINE controls.
- Minor filter updates.
- NOIZ upgrades: Choice between white/pink noise & dedicated A/D envelope.
- Extra harmonic oscillator added to Oscillator 2.
- Various visual & performance updates.

1.5.2:
- Fixed MOD LFO & OSC ENV destination knobs staying active when the LFO / envelope is turned off.
- Added switches to change the response of the AMP ENV, OSC MIX and FILTER ENV knobs from linear to exponential.
- Added a Bass Boost option to the OSC MIX.
- Updated MAIN FILTER (exclusively oversampled, better cpu optimization)
- Chorus effect is now single band with more added controls.
- Added 'CRUNCH'. An aggressive kind of distortion effect.
- Various visual and optimization work done..

-v1.5.1 Update:
-Fixed Main Filter keytracking calculation.
-Fixed 'Osc Mix' displayed values.
