Main Page

Abstract

The Main page of VALVES provides key performance controls to play and tweak presets.

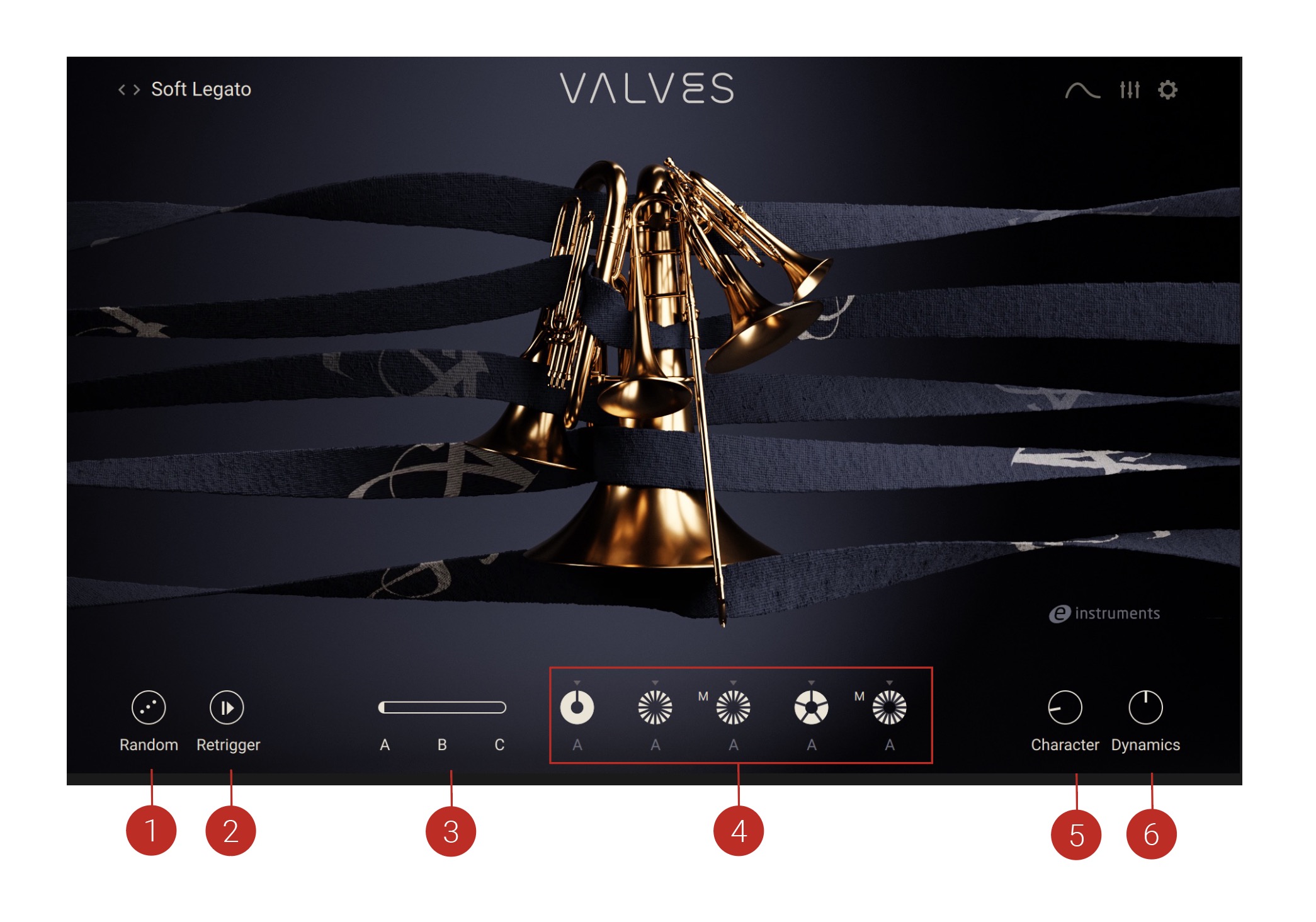

The Main page features a number of key controls that allow you to quickly adjust the sound and playback. From the Main page, you can also access the Sequencer, Mixer, and Settings pages for more detailed settings. The Main page gives you quick access to the other sections of VALVES though it is not where you make most of the detailed settings for sounds and playback. However it does contain a number of quick controls. The main page contains the following elements:

  1. Random: Creates new settings for each of the five instruments. For more information, refer to Random.

  2. Retrigger: When Retrigger is active, each key press restarts the sequence of the instrument to which that note is assigned. For more information, refer to Retrigger.

  3. Moments: Click the A, B or C text or use the slider to switch between each of the three variations available for each of the five instruments. For more information, refer to Moments.

  4. Tracks: Displays the five instruments and a quick view of their sequencer playback. Each instrument can be soloed, muted, locked or deactivated from here. For more information, refer to Tracks.

  5. Character: A macro control that alters tone and EQ. For more information, refer to Character.

  6. Dynamics: Changes the tone and forcefulness of the sound. For more information, refer to Dynamics.

Random

Clicking the Random button will create new settings for each of the instruments and the sequencers. This is a useful way to quickly come up with new sounds and patterns without having to make all the settings yourself. New settings will be created for each of the five instruments unless any instrument has been locked in which case it will not be changed.

Moments

Moments represent different sequencer patterns for each of the five instruments. The Moments slider can be moved left or right to place patterns A,B or C into the sequencer for each instrument. With the slider fully to the left, each sequencer will use pattern A. As you begin to move it to the right, pattern B will be introduced gradually in ascending order into instruments one to five. With the slider fully at position B, all five instruments will use pattern B. The same applies as you continue to move the slider to the right so that with the slider fully in the C position, all five sequencers will be using pattern C.

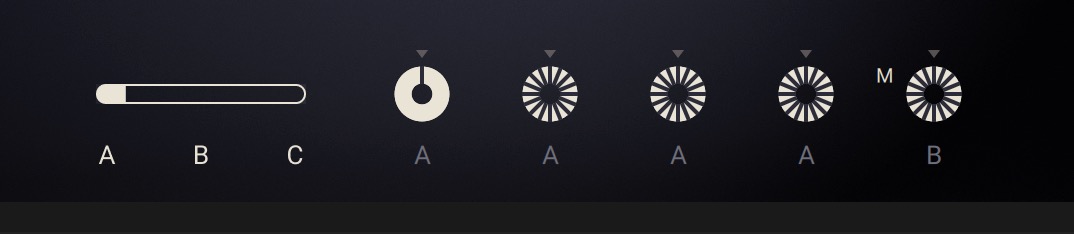

Moments controls in VALVES

The five circle displays show which of the patterns A, B or C are in use by each instrument. The segmented displays also indicate how complex each pattern is. A more solid circle represents a long, held note while a more segmented circle means that more repeated notes are contained in the pattern. The pattern in use for each instrument can be seen in greater detail and edited in the Sequencer page. Although the Moments are pre-set in VALVES you can manually edit any sequence as part of a Moment and it will be saved as part of your snapshot or Kontakt preset.

Tip

The Moments slider can be automated in a DAW to change sequencer patterns over time.

Tracks

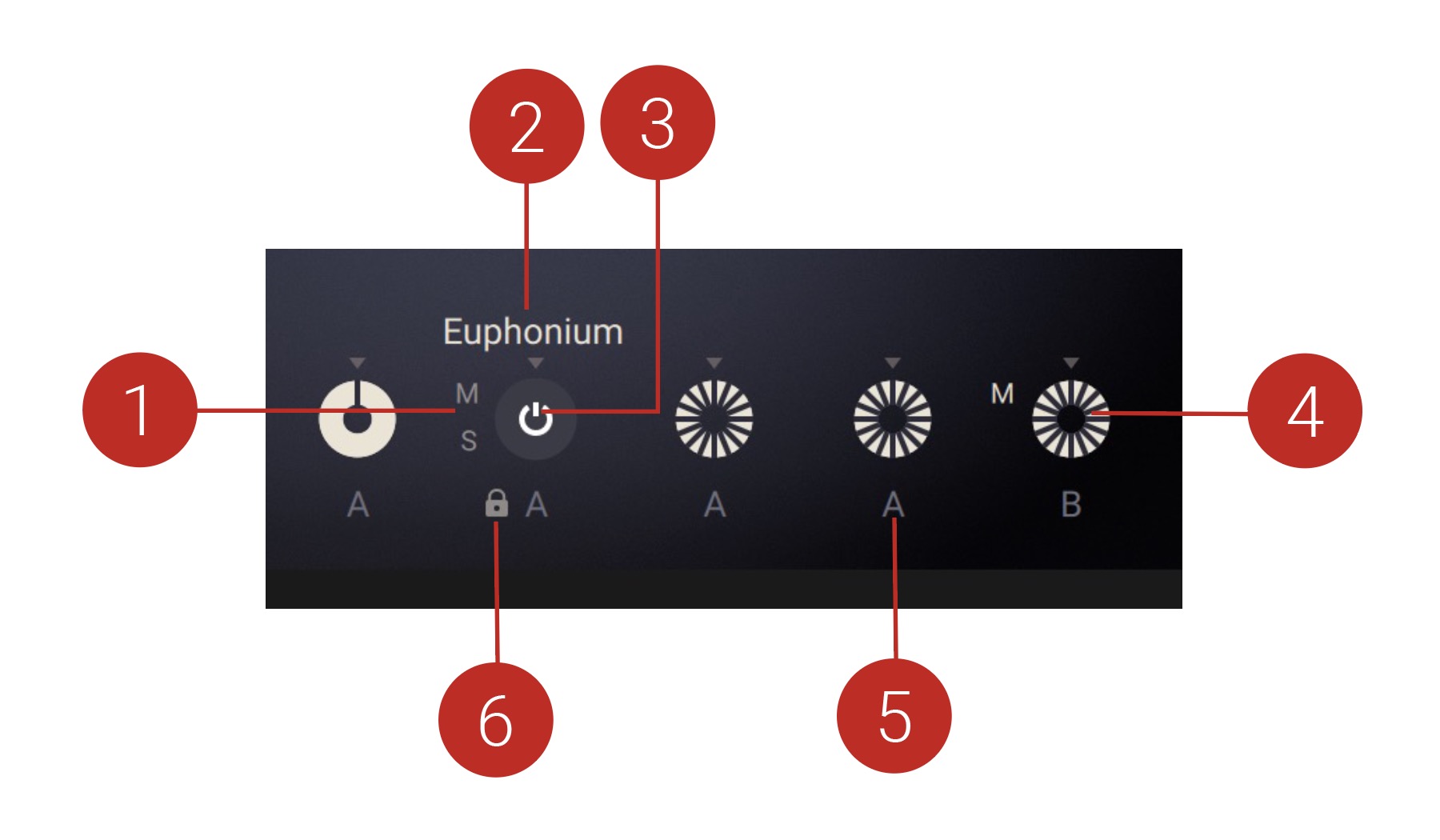

The five tracks represent the five instruments used in VALVES. There are several controls available for each one which appear when you move the mouse over any of the circles.

  1. Mute and Solo: Click M to mute the instrument and S to solo it.

  2. Instrument Name: The currently selected instrument.

  3. Power Button: Click to turn an instrument on or off. This is different from muting it because where muting only stops an instrument's sound, turning it off entirely will stop it from having notes distributed to it and thus affect the way that notes are distributed to those instruments which remain active. Deactivating an instrument will also unload the samples from RAM.

  4. Sequencer Overview: A quick visual representation of the sequencer assigned to the instrument.

  5. Moment Indicator: The letter A, B or C that appears beneath a circle denotes the Moments pattern that its sequencer is currently using.

  6. Lock: Prevents the settings of the corresponding instrument from being altered by the Randomize button and the Moments slider. You can use this to preserve the sequencer settings of specific instruments while randomizing others.

Retrigger

When Retrigger is deactivated you can play a note to start playback of the instruments' sequencers and when you add more notes, the sequences will continue to play in a loop without restarting. The sequencers are not interrupted by the pressing of new notes.

When Retrigger is active however, pressing new notes will restart the sequencers of the instruments to which those notes are assigned based on their pitch. So for example when Retrigger is active, you could hold a low note which would be played by the tuba and then introduce a series of higher notes which would be played by the french horn or flugelhorn. As you kept playing new notes in the higher range, the sequences for the french horn and flugelhorn would be restarted with each new key press. The result is a more dynamic performance as the higher instruments play with more variation than simply looping their entire sequence on repeat.

Note

The Retrigger switch is global and affects all five instruments but it is also based on the note allocation rules in VALVES. When active it will retrigger the sequencers only of those instruments to which the newly played notes get assigned.

Character

Character is a macro control that controls a variety of parameters including EQ and tape saturation. At position zero, the sound is very neutral and as the value is increased, more low and high end is introduced, giving the sound more bite. At the 100 position, more mid range is introduced.

Dynamics

In the sequencer track for an instrument, the articulations are displayed as a series of shapes and waves, with the height of the shape representing the force or softness of its playing. While you can manually drag any articulation's dynamics up or down using the mouse, doing this individually for each articulation if required, the Dynamics knob is different.

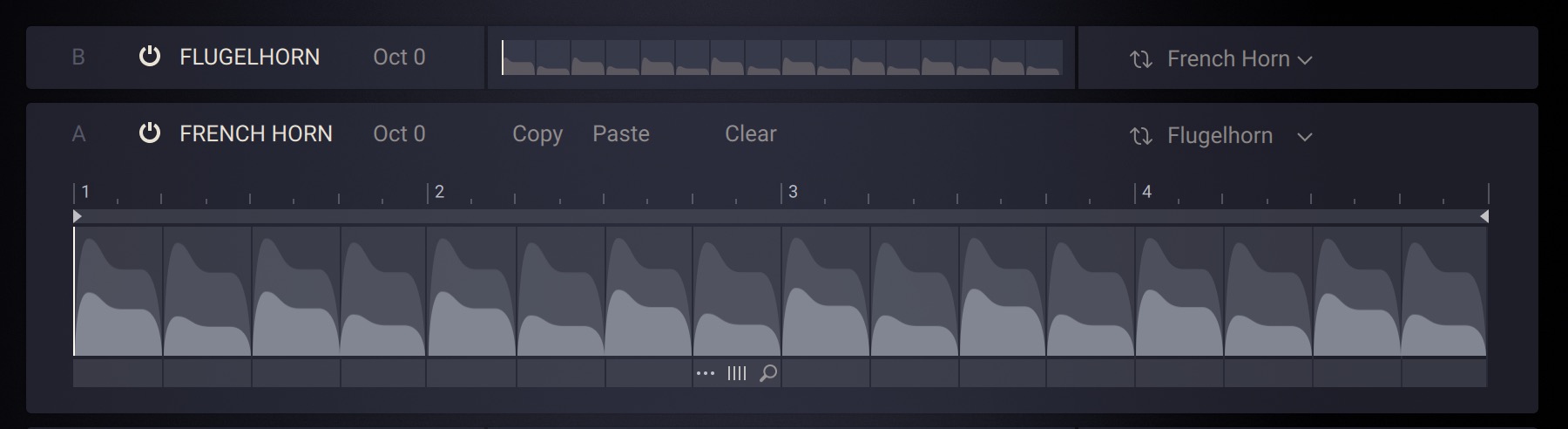

A sequencer in VALVES showing dynamic levels in light and dark grey

It works by increasing or decreasing the dynamics of all of the active instruments' articulations at once. It does this while maintaining their relative differences, so each one gets louder or softer proportionate to its starting value. This means that the whole sequence is changed in a way that sounds natural rather than softer and louder articulations all being equalized to the same level. It's a useful control for changing the playing style to be more forceful or to be softer but without having to change an instrument's volume in the Mixer.

VALVES uses samples that have been recorded at many different dynamic levels so when you alter the dynamics of an instrument in this way it is actually using dedicated samples to provide the louder or softer sound rather than simply changing volume levels. It employs smooth crossfading, moving between the velocity layers in real time to make the transitions seamless and allow you to achieve maximum creative expression. The highest level on the sequencer display represents the loudest samples recorded and the lowest level, the softest.

Tip

The Dynamics knob can be automated in your DAW to change over time, providing an extra level of control.
