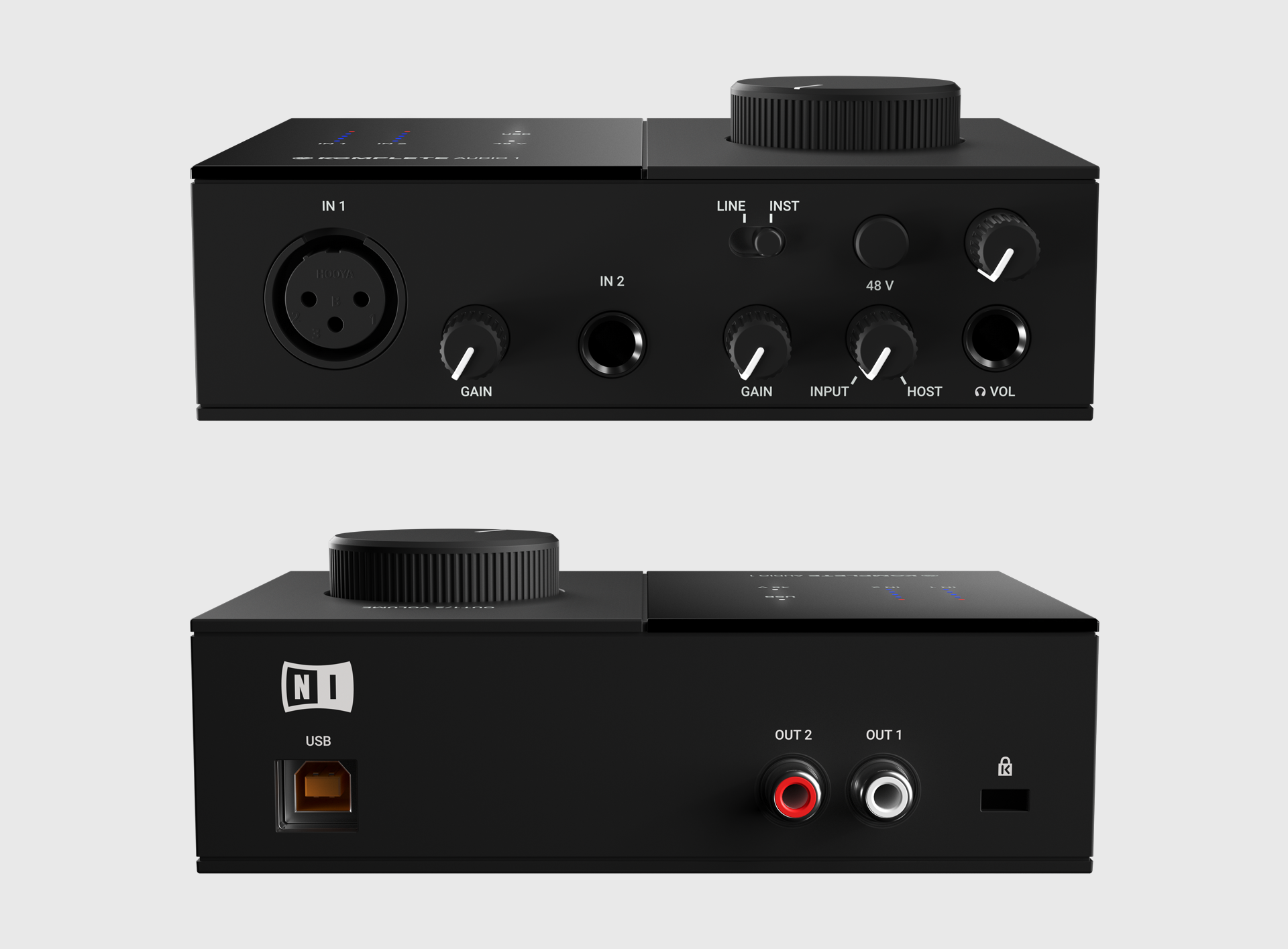

1. IN 1: Connect your microphone here using an XLR cable. The GAIN knob next to it controls the input level. [25.7%,31.4%]
2. IN 2: Connect your guitar, bass, or synthesizer here using a 1/4 inch jack cable. The GAIN knob next to it controls the input level. [25.7%,31.4%]
3. LINE/INST: Select LINE when using IN 1 with a synthesizer or any other line level source. Select INST when using a guitar or bass. [36.6%, 25.4%]
4. 48V: Enable the 48V power supply (phantom power) for IN 1 when using a condenser microphone. [68.1%, 25%]
5. INPUT/HOST: Adjust the balance between the inputs (direct monitoring) and the sound from the computer for the headphones output. [68.1%, 37.1%]
6. Headphones output: Connect your headphones here. The knob above controls the headphones volume. [77.4%, 35.5%]
7. OUT1/2 VOLUME: Control the output level of the outputs on the back of the device, OUT 1 and OUT 2. [65.8%, 12.6%]
8. Metering and status LEDs: Shows the input level of IN 1 and IN 2 as well as the status of the USB connection and the 48V phantom power. [28.6%, 15.1%]
9. OUT 1 and OUT 2: Connect your stereo system or active loudspeakers here using RCA cables. [64.5%, 72.4%]
10. USB Connector: Connect your computer here using the provided USB cable. [30.9%, 83.5%]
